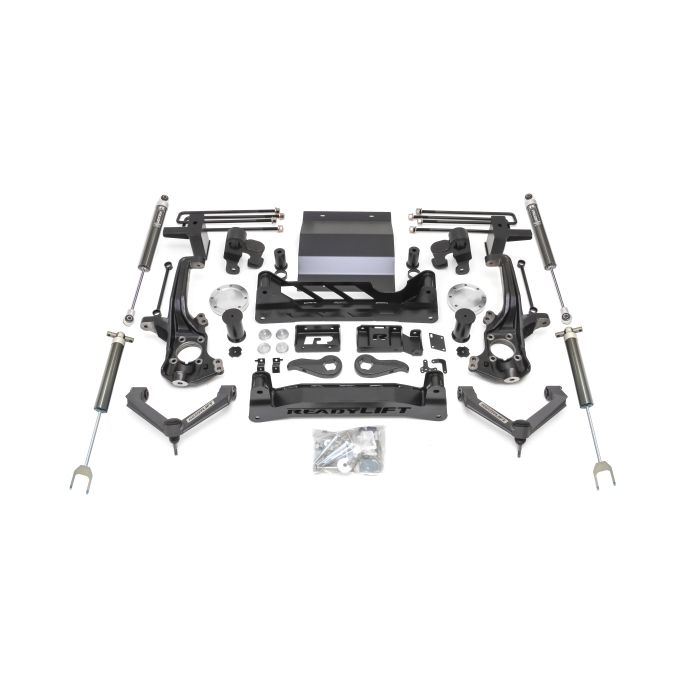

ReadyLift 8'' Lift Kit with Falcon 1.1 Shocks
Features & Benefits: Laser cut, CNC formed heavy-duty front/rear drop crossmembers. Bolt-on installation well almost. Some slight modifications will be required. OE-style cast iron knuckles have been precisely engineered to provide the ideal geometry to ensure proper alignment and improve the overall driving experience. Increases ground clearance. Includes our new torsion bar relocation brackets that keep the torsion bars in their factory location no need to lower the torsion bars to lift! 6 lift kits - Allows for 37x12.50 on a 9" wide wheel with zero offset. Available with ReadyLIFT Falcon 1.1 Monotube F/R shocks. Includes important differential drop brackets and CNC-machined billet Aluminum CV axle spacers. NOTE: Some GM HD trucks equipped with Tow Package may require custom-length U-bolts purchased separately. Custom U-bolt length may vary by vehicle application. If the ReadyLIFT kit's standard U-bolts are too short, ReadyLIFT recommends locally sourcing custom U-bolts built to each truck's specifications.
8'' Lift Kit - GM Silverado / Sierra 2600HD/3500HD W/ Falcon 1.1 Shocks 2020-2026
Features & Benefits
- Big lift kit designed for 2020-2022 GM 2600HD/3500HD 4WD and AT4 models
- Complete front and rear off-road suspension system
- Includes (4) Falcon 1.1 Monotube Shocks
- Allows for up to 38" tall tires
- Uses ReadyLIFT's Forged Torsion Keys
- Made in the U.S.A.
- Compatible with tow packages (see details for notes)
- Note: Single Cab configuration not validated for fitment and drivability by ReadyLIFT
Specifications
| Fitment | Direct Fitment |
|---|---|
| Front Lift Component | Torsion Key |
| Front Lift Height | 8 Inches |
| Front or Rear | Front and Rear |
| Front Shocks | Falcon 1.1 Monotube |
| Install Difficulty | Difficult Requires Professional Installation |
| Installation Time | 5+ Hours |
| Max Tire Size | 38 Inch |
| Rear Lift Component | Block |
| Rear Lift Height | 8 Inches |
| Rear Shocks | Falcon 1.1 Monotube |
| Shocks Included | Yes |
⚠ WARNING (California Prop 65): This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
| Box Dimensions (L × W × H) | 48" × 13" × 25" |
|---|---|
| Shipping Weight | 305 lb |
| Lowering / Lift | Lift 4" or more |
| UPC | 194933307135 |
| Manufacturer Part # | 44-30820 |
| Front Height Range | +8" |
| Rear Height Range | +8" |
