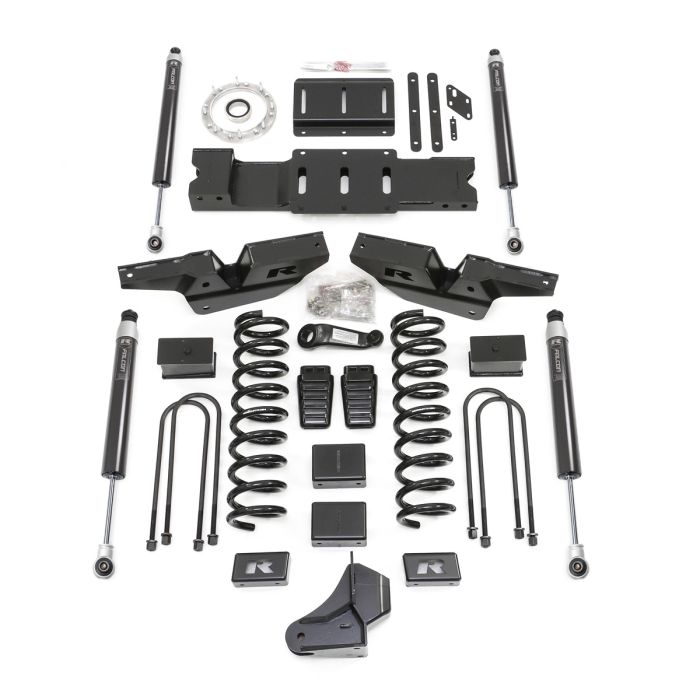

ReadyLift 4.5'' coil lift kit - front and rear track bar brackets, front coils and rear blocks, drop brackets w/ Falcon shocks

The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire.   Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance.   These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front & rear shocks.   The 4.5" Ram HD kit includes our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.   The Ram 3500 HD comes with a high-output diesel engine DIS system.   Kit 49-19430 includes the new DIS re-positioning components, heavy-duty and great riding 4.5" lift front springs, 3" lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front/rear shocks. *Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.

2019-2023 Ram 3500 Diesel 4WD 4.5'' Coil Spring Lift Kit

Features & Benefits

• 2019-2023 Ram 3500 4WD HD 4.5" lift kit
• 4.5inch front with rear blocks lift kit
• Includes allnew transfer case clocking ring and new heavy-duty transmission crossmember
• Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD
• For use on Diesel engine Ram 3500 4WD HD trucks only
• Allows for up to 37x13.50 tires on 20" x 9" wide wheels with 18 offset
• Does not work with Factory Air suspension, Auto Level system (factory helper bags), HEMI Gasoline engine, dually models, Classic
• 201920192023 Ram 3500 4WD HD 4.5"" lift kit
• Allows for up to 37x13.50 tires on 20"" x 9"" wide wheels with Allows for up to 37x13.50 tires on 20"" x 9"" wide wheels with 18 offset

Specifications
