MaxTrac 2007-2021 TUNDRA 2WD/4WD 6" CROSSMEMBER LIFT KIT
$2,168.59
$2,385.45
Ships within 48 hours
SKU
MTS-K946764

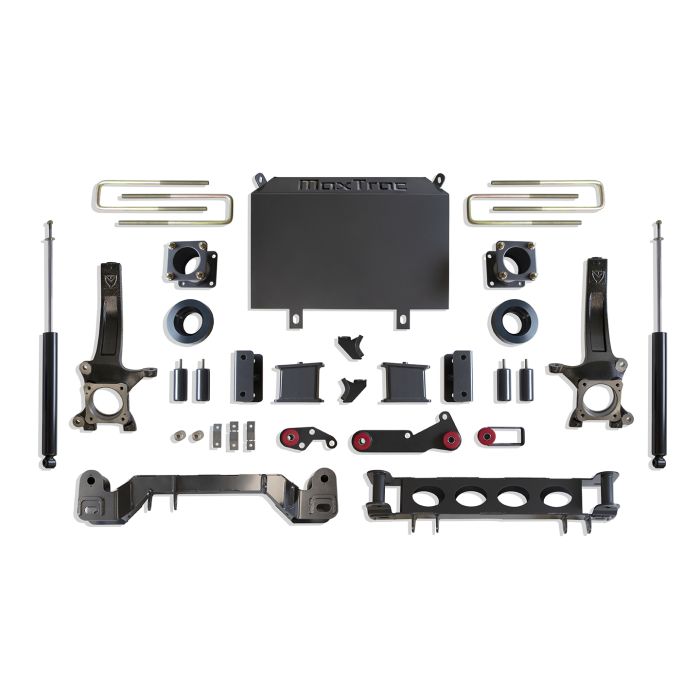

MAX TRAC SUSPENSION'S KIT# K946764 IS A COMPLETE 6" LIFT KIT INCLUDING SUBFRAMES, STEERING KNUCKLES, DIFF DROP, STRUT SPACERS, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, SKID PLATE, BLOCKS, U-BOLTS, CARRIER BEARING KIT & REAR MAX TRAC SHOCKS
MAX TRAC SUSPENSION'S KIT# K946764 IS A COMPLETE 6" LIFT KIT INCLUDING SUBFRAMES, STEERING KNUCKLES, DIFF DROP, STRUT SPACERS, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, SKID PLATE, BLOCKS, U-BOLTS, CARRIER BEARING KIT & REAR MAX TRAC SHOCKS
Product specs
Kit typeLift/Level
Engine typeOther
Lift front6"
Lift rear4"
Drive2WD,4WD
Shock detailsR: 2900SL-8 (X2)
Sold asKit
MaterialSteel
ColorGrey
Est. labor hours7.0
Kit components
Installation guides
📄 K946764 KIT
⚠ Important notes — please read
- REQUIRES 18" RIMS OR LARGER W/ 6" BACKSPACING OR LESS
- CLEARS UP TO A 35" x 12.50" TIRE ON 8"-9" WIDE RIM
- FENDER TRIMMING MAY BE REQUIRED
- THIS KIT DOES NOT REQUIRE CUTTING OF THE FRAME FOR INSTALLATION
- TRUCK CAN BE PUT BACK TO STOCK
- 2WD TRUCKS WILL NOT USE DIFF OR CV COMPONENTS
- ALSO FITS TRD PRO MODEL BUT MUST LEAVE OUT 2" COIL SPACERS
- MaxTrac DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
| Shipping Weight | 165 lb |
|---|---|
| Manufacturer Part # | K946764 |
