MaxTrac 2017-2022 F-250/F-350 4WD DIESEL 6" LIFT KIT W/ 4-LINKS (MAX TRAC SHOCKS)
$3,863.26
$4,249.59
Ships within 48 hours
SKU
MTS-K943362L

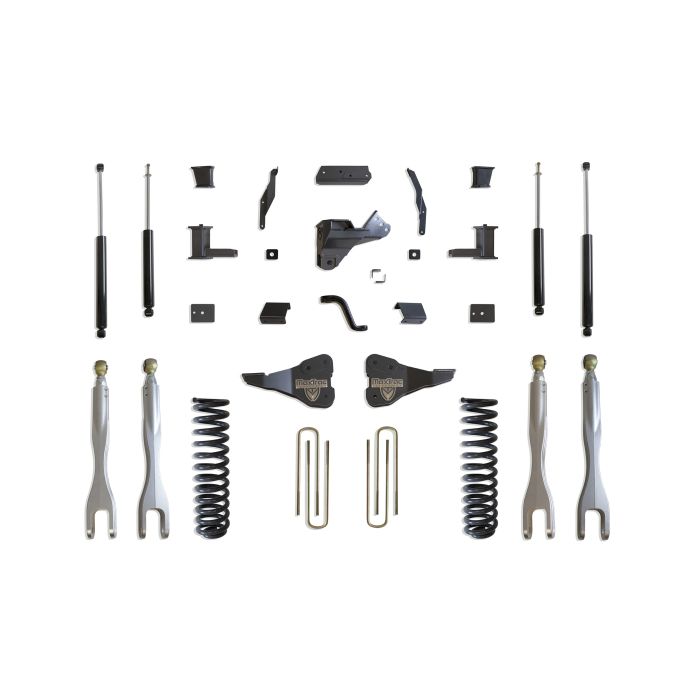

MAX TRAC SUSPENSION'S KIT# K943362L IS A COMPLETE 6" LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS
MAX TRAC SUSPENSION'S KIT# K943362L IS A COMPLETE 6" LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS
Product specs
Kit typeLift/Level
Engine typeDiesel
Lift front6"
Lift rear3"
Drive4WD
Shock detailsF: 2800SL-8 (X2), R: 3400LL-4 (X2)
Sold asKit
MaterialSteel
ColorGrey
Est. labor hours8.0
Kit components
Installation guides
📄 K943341/K943362 KIT
⚠ Important notes — please read
- REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
- CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
- DOES NOT FIT 2WD MODELS
- FENDER TRIMMING MAY BE REQUIRED
- KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
- 2020+ DUALLY MODELS REQUIRE REMOVING TOP SIDE OVERLOAD SPRING & SPACER BLOCK
- MODELS W/ A FACTORY REAR SWAY BAR REQUIRE PART # 9433RSB
- MaxTrac DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
| Shipping Weight | 313 lb |
|---|---|
| Manufacturer Part # | K943362L |
This kit ships as the following components:
| Component | SKU | Qty per Kit | Price | |
|---|---|---|---|---|
| MAX TRAC SUSPENSION'S PART# 753360 IS A PAIR OF 6" FRONT LIFT COILS MADE FROM HOT WOUND STEEL & POWDER COATED GREY | MTS-753360 | 1 | $308.06 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 943300-3 IS A BOX INCLUDING DRIVER SIDE 4-LINK ARMS, BRACKET & HARDWARE | MTS-943300-3 | 1 | $1,283.78 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 943300-4 IS A BOX INCLUDING PASSENGER SIDE 4-LINK ARMS, BRACKET & HARDWARE | MTS-943300-4 | 1 | $1,283.78 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 943360S IS A BOX INCLUDING FRONT & REAR MAX TRAC SHOCKS (W/6" LIFT) | MTS-943360S | 1 | $263.41 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 903360 IS A 3-4" REAR BOX KIT INCLUDING 6" LIFT BLOCKS & U-BOLTS | MTS-903360 | 1 | $238.85 | View / Buy |
