MaxTrac 2013-2018 RAM 3500 4WD DIESEL 6" LIFT KIT (MAX TRAC SHOCKS)
$1,552.82
$1,708.10
Ships within 48 hours
SKU
MTS-K947363

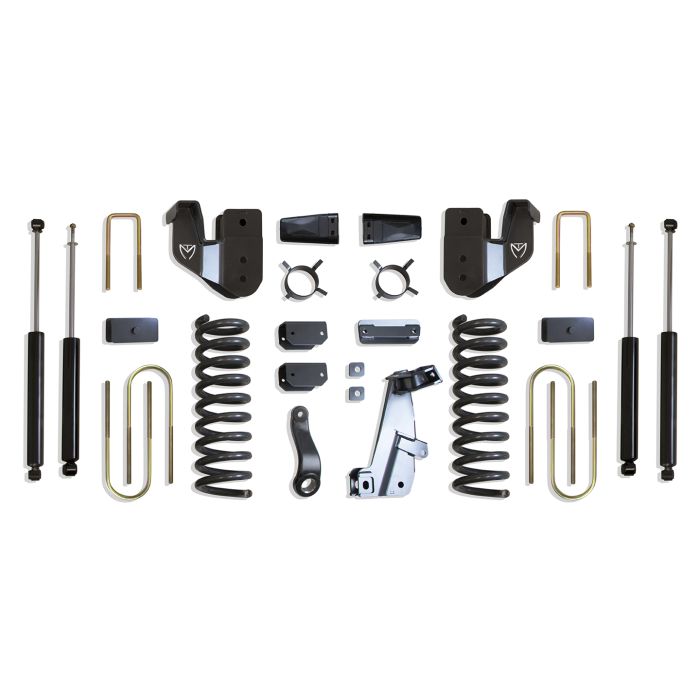

MAX TRAC SUSPENSION'S KIT# K947363 IS A COMPLETE 6" LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS
MAX TRAC SUSPENSION'S KIT# K947363 IS A COMPLETE 6" LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS
Product specs
Kit typeLift/Level
Engine typeDiesel
Lift front6"
Lift rear3.5"
Drive4WD
Shock detailsF: 2800SL-8 (X2), R: 3200LL-4 (X2)
Sold asKit
MaterialSteel
ColorGrey
Est. labor hours7.0
Kit components
Installation guides
📄 K947200/K947300 KIT
⚠ Important notes — please read
- REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
- CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
- FENDER TRIMMING MAY BE REQUIRED
- DOES NOT FIT 2WD MODELS
- NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
- WILL ALSO FIT DUALLY MODELS
- DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
- MaxTrac DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
| Shipping Weight | 215 lb |
|---|---|
| Manufacturer Part # | K947363 |
This kit ships as the following components:
| Component | SKU | Qty per Kit | Price | |
|---|---|---|---|---|
| MAX TRAC SUSPENSION'S PART# 752860 IS A PAIR OF 6" FRONT LIFT COILS MADE FROM HOT WOUND STEEL & POWDER COATED GREY | MTS-752860 | 1 | $350.41 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 947200-1 IS A BOX KIT INCLUDING A TRAC BAR BRACKET, SWAY BAR BRACKETS, EXTENDED BUMP STOPS, PITMAN ARM & HARDWARE | MTS-947200-1 | 1 | $488.49 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 947200-2 IS A BOX KIT INCLUDING RADIUS ARM DROP BRACKETS & HARDWARE | MTS-947200-2 | 1 | $307.58 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 947360S IS A BOX KIT INCLUDING FRONT & REAR MAX TRAC SHOCKS (W/ 6" LIFT KIT) | MTS-947360S | 1 | $252.58 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 907335 IS A 3.5" REAR BOX KIT INCLUDING 3.5" LIFT BLOCK & U-BOLTS | MTS-907335 | 1 | $153.76 | View / Buy |
