MaxTrac 2023-2025 F-250/F-350 4WD DIESEL 4" LIFT KIT W/ 4-LINKS (VULCAN IFP SHOCKS)
$4,480.07
$4,928.08
Ships within 48 hours
SKU
MTS-K944341VL

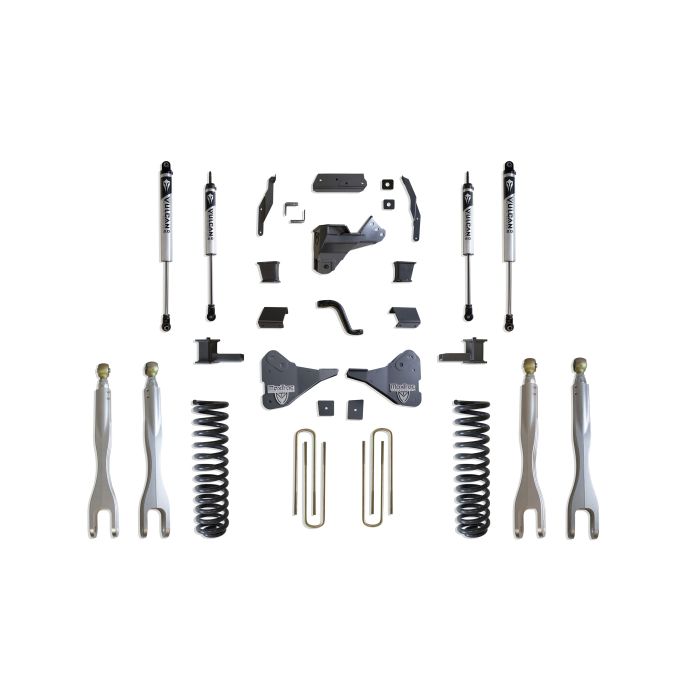

MAX TRAC SUSPENSION'S KIT# K944341VL IS A COMPLETE 4" LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BLOCKS, U-BOLTS & FRONT/REAR VULCAN SERIES SHOCKS
MAX TRAC SUSPENSION'S KIT# K944341VL IS A COMPLETE 4" LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BLOCKS, U-BOLTS & FRONT/REAR VULCAN SERIES SHOCKS
Product specs
Kit typeLift/Level
Engine typeDiesel
Lift front4"
Lift rear2"
Drive4WD
Shock detailsF: 2650SLV-4 (X2), R: 3200LLV-4 (X2)
Sold asKit
MaterialSteel
ColorGrey
Est. labor hours8.0
Kit components
Installation guides
📄 K944341/K944363 KIT
⚠ Important notes — please read
- REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
- CLEARS UP TO A 37" x 13.50" TIRE ON 8"-9" WIDE RIM
- DOES NOT FIT 2WD MODELS
- FENDER TRIMMING MAY BE REQUIRED
- KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
- 2020+ DUALLY MODELS REQUIRE REMOVING TOP SIDE OVERLOAD SPRING & SPACER BLOCK
- DOES NOT FIT MODELS W/ AUTO LEVELING HEADLIGHT/BED WEIGHT SENSORS (PROVISIONS COMING SOON)
- MaxTrac DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
| Shipping Weight | 313 lb |
|---|---|
| Manufacturer Part # | K944341VL |
This kit ships as the following components:
| Component | SKU | Qty per Kit | Price | |
|---|---|---|---|---|
| MAX TRAC SUSPENSION'S PART# 753340 IS A PAIR OF 4" FRONT LIFT COILS MADE FROM HOT WOUND STEEL & POWDER COATED GREY | MTS-753340 | 1 | $304.54 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 944300-3 IS A BOX INCLUDING DRIVER SIDE 4-LINK ARMS, BRACKET & HARDWARE | MTS-944300-3 | 1 | $1,363.14 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 944300-4 IS A BOX INCLUDING PASSENGER SIDE 4-LINK ARMS, BRACKET & HARDWARE | MTS-944300-4 | 1 | $1,363.14 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 903340 IS A 1-2" REAR BOX KIT INCLUDING 4" LIFT BLOCKS & U-BOLTS | MTS-903340 | 1 | $190.66 | View / Buy |
| MAX TRAC SUSPENSION'S PART# 943340V IS A BOX INCLUDING FRONT & REAR VULCAN SERIES SHOCKS (W/ 4" LIFT) | MTS-943340V | 1 | $773.21 | View / Buy |
