MaxTrac 2019-2024 RAM 3500 4WD DIESEL 6" LIFT KIT W/ 4-LINKS (VULCAN SHOCKS) (FACTORY REAR AIR RIDE)
$4,092.96
$4,502.26
Ships within 48 hours
SKU
MTS-K947563VLA

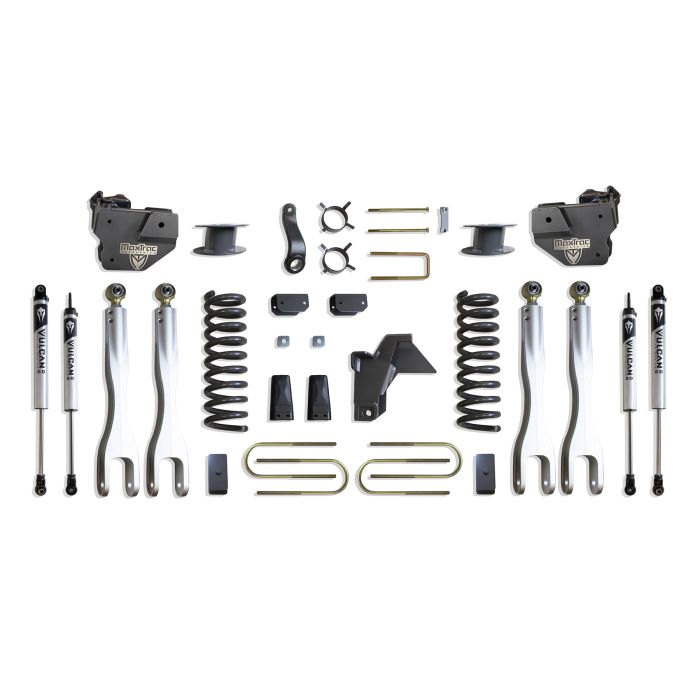

MAX TRAC SUSPENSION'S KIT# K947563VLA IS A COMPLETE 6" LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS, REAR AIR BAG SPACERS & FRONT/REAR VULCAN SHOCKS
MAX TRAC SUSPENSION'S KIT# K947563VLA IS A COMPLETE 6" LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS, REAR AIR BAG SPACERS & FRONT/REAR VULCAN SHOCKS
Product specs
Kit typeLift/Level
Engine typeDiesel
Lift front6"
Lift rear3.5"
Drive4WD
Shock detailsF: 2650SLV-4 (X2), R: 3400LLV-4 (X2)
Sold asKit
MaterialSteel
ColorGrey
Est. labor hours8.0
Kit components
Installation guides
📄 K947400A/K947500A KIT
⚠ Important notes — please read
- REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
- CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
- FENDER TRIMMING MAY BE REQUIRED
- DOES NOT FIT 2WD MODELS
- NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
- DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
- 2019+ RAM 3500 4WD W/ AISIN TRANSMISSION REQUIRES FRONT DRIVESHAFT (PART# RAM-4119K-AISIN) FOR 6"-8" LIFT KITS
- MaxTrac DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
| Shipping Weight | 325 lb |
|---|---|
| Manufacturer Part # | K947563VLA |
This kit ships as the following components:
