MaxTrac 2019-2024 RAM 3500 4WD DIESEL 6" LIFT KIT W/ 4-LINKS (MAX TRAC SHOCKS)

Name: MaxTrac 2019-2024 RAM 3500 4WD DIESEL 6" LIFT KIT W/ 4-LINKS (MAX TRAC SHOCKS)
Brand: MaxTrac Suspension
SKU: MTS-K947563L
Price: 3524.43 USD
Availability: InStock

$3,524.43 $3,876.87

Ships within 48 hours

SKU

MTS-K947563L

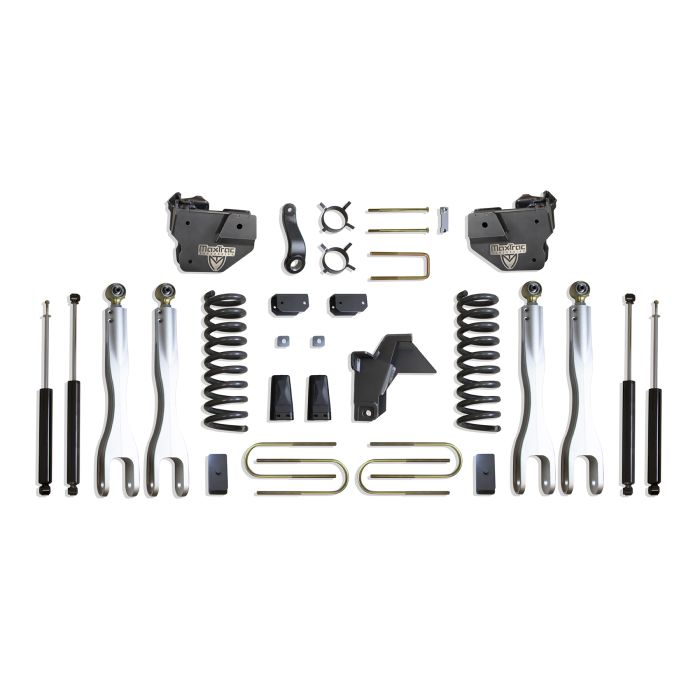

MAX TRAC SUSPENSION'S KIT# K947563L IS A COMPLETE 6" LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS

Details

Product specs

Kit typeLift/Level

Engine typeDiesel

Lift front6"

Lift rear3.5"

Drive4WD

Shock detailsF: 2800SL-8 (X2), R: 3200LL-4 (X2)

Sold asKit

MaterialSteel

ColorGrey

Est. labor hours8.0

Kit components

Installation guides

📄 K947400/K947500 KIT

⚠ Important notes — please read

REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
DOES NOT FIT 2WD MODELS
NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
2019+ RAM 3500 4WD W/ AISIN TRANSMISSION REQUIRES FRONT DRIVESHAFT (PART# RAM-4119K-AISIN) FOR 6"-8" LIFT KITS
MaxTrac DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES

More Information

More Information
Shipping Weight	325 lb
Manufacturer Part #	K947563L

Kit Components

This kit ships as the following components:

Component	SKU	Qty per Kit	Price
MAX TRAC SUSPENSION'S PART# 752860 IS A PAIR OF 6" FRONT LIFT COILS MADE FROM HOT WOUND STEEL & POWDER COATED GREY	MTS-752860	1	$350.41	View / Buy
MAX TRAC SUSPENSION'S PART# 947400-1 IS A BOX KIT INCLUDING A TRAC BAR BRACKET, SWAY BAR BRACKETS, EXTENDED BUMP STOPS, PITMAN ARM & HARDWARE	MTS-947400-1	1	$437.63	View / Buy
MAX TRAC SUSPENSION'S PART# 947200-3 IS A BOX KIT INCLUDING DRIVER SIDE 4-LINK ARMS, BRACKET & HARDWARE	MTS-947200-3	1	$1,166.94	View / Buy
MAX TRAC SUSPENSION'S PART# 947200-4 IS A BOX KIT INCLUDING PASSENGER SIDE 4-LINK ARMS, BRACKET & HARDWARE	MTS-947200-4	1	$1,163.11	View / Buy
MAX TRAC SUSPENSION'S PART# 947360S IS A BOX KIT INCLUDING FRONT & REAR MAX TRAC SHOCKS (W/ 6" LIFT KIT)	MTS-947360S	1	$252.58	View / Buy
MAX TRAC SUSPENSION'S PART# 907335 IS A 3.5" REAR BOX KIT INCLUDING 3.5" LIFT BLOCK & U-BOLTS	MTS-907335	1	$153.76	View / Buy
