MaxTrac 2017-2022 F-250/F-350 4WD DIESEL 8" LIFT KIT (FOX SHOCKS)
$2,618.00
$2,879.80
Ships within 48 hours
SKU
MTS-K943385F

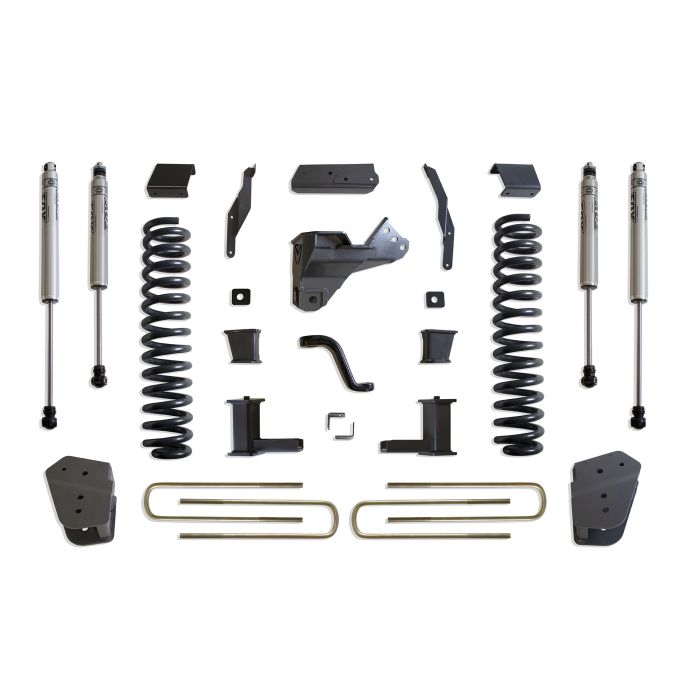

MAX TRAC SUSPENSION'S KIT# K943385F IS A COMPLETE 8" LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BLOCKS, U-BOLTS & FRONT/REAR FOX 2.0 SHOCK
MAX TRAC SUSPENSION'S KIT# K943385F IS A COMPLETE 8" LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BLOCKS, U-BOLTS & FRONT/REAR FOX 2.0 SHOCK
Product specs
Kit typeLift/Level
Engine typeDiesel
Lift front8"
Lift rear5"
Drive4WD
Shock detailsF: 763329F (X2), R: 773335F (X2)
Sold asKit
MaterialSteel
ColorGrey
Est. labor hours7.0
Kit components
Installation guides
📄 K943385 KIT
⚠ Important notes — please read
- REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
- CLEARS UP TO A 40" x 13.50" TIRE ON 8"-9" WIDE RIM
- DOES NOT FIT 2WD MODELS
- FENDER TRIMMING MAY BE REQUIRED
- KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
- 2020+ DUALLY MODELS REQUIRE REMOVING TOP SIDE OVERLOAD SPRING & SPACER BLOCK
- MODELS W/ A FACTORY REAR SWAY BAR REQUIRE PART # 9433RSB
- MaxTrac DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
| Shipping Weight | 225 lb |
|---|---|
| Manufacturer Part # | K943385F |
This kit ships as the following components:
