IHC Suspension 2014-2018 GM1500 (Aluminum/Stamped) 5/7 Lowering Kit Extended/Crew Cab W/ Weld On C-Notch

$1,045.00
In stock
SKU
IHC-GM1418CK-57CCW

⌛ Backorder — order now, ships when available

free shipping
Hassle Free Returns
IHC SUSPENSION
IHC Suspension is excited to announce our best-selling 2014-2018 GM 1500 Single Cab 5/7 lowering kit. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.
\nOur key features that differentiate us from the competition and save you money:
\nKill 2 birds with 1 stone. Not only are you lowering the truck but also replacing your 6+-year-old ball joints and bushing with IHC control arms.
\nIHC’s control arm aligns to factory specs.
\nStandard upper control arms for camber correction. (No additional parts needed like camber/caster bushings or offset ball joints to align)
\nIHC’s control arms run polyurethane bushings for maximum performance, extended bushing life, and minimal maintenance.
\nIHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
\nWeld on C-notch
\nMADE IN THE USA!
\nManufactured in TEXAS!
\nLifetime warranty on all metal parts!
\nIHC Suspension’s 2014-2018 GM 1500 Single Cab 5/7 lowering kit consists of upper and lower control arms. You achieve the 5″ front drop with the lower control arm and the upper is for alignment correction. Spacers are included to adjust front control arms from 5” to 4” without purchasing any more parts. Shorter sway bar links are included for better sway bar angle. The rear consists of a flip kit with the correct pinion angle built-in, so NO pinion shims are needed. Nitrogen drop shocks included. C-notch is required. IHC’s weld on under bed C-notch included.

What's Included

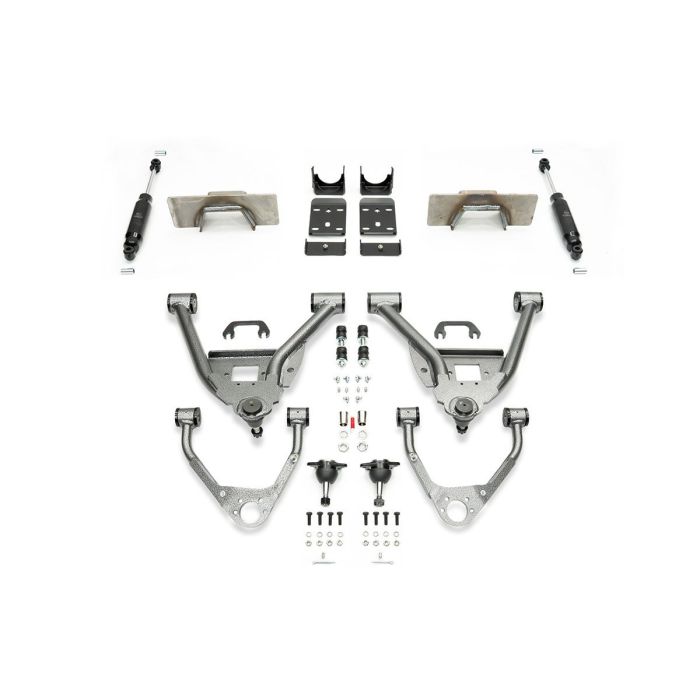

FRONT UPPER & LOWER CONTROL ARMS SPACERS SWAY BAR LINKS REAR FLIP KIT DROP SHOCKS WELD ON C-NOTCH

Specifications

Weight93 lbs

Package Weights & Dimensions

Weight: 58 LBS.
Dimensions: 20″X20″X10″
Weight: 35 LBS.
Dimensions: 20″X12″X6″

Fitment Notes

2014-2018 GM1500 2WD EXTENDED & CREW CAB (ALUMINUM/STAMPED STEEL) Will NOT fit Cast arms
