GM C-20/C-30 Pickup 1973-1991 (10 Bolt Axle) Rear 8" Drop Axle Flip Kit with Shock Extenders
$310.00
Backorder — ships when available
SKU
SWIC30FLIP-KIT
Switch Suspension bolt-in rear 8" drop axle flip kit with rear shock extension brackets for 1973-1991 GM C-20/C-30 pickups with the 10-bolt axle. No welding, preset pinion angle. Requires a frame C-notch.
Product Details
Switch Suspension's axle flip kit for C-20 and C-30 trucks, sold here together with their rear shock extension brackets. Fully bolt-in with no welding, and the pinion angle is preset for you. The kit flips the axle to the top of the leaf springs for a full 8" drop. Hardened U-bolts, centering pins and hardware are included. The shock extension brackets put the rear shocks back at a proper operating angle after lowering, which greatly improves ride quality. All parts are blasted and powder coated satin black.
- 8" rear drop
- Bolt-in, no welding
- 1/4" steel, laser cut for precise fitment
- Preset pinion angle
- Shock extension brackets restore shock angle and ride quality
- Satin black powder coat
- Shock extension brackets made in the USA
Fitment
GM C-20 & C-30, 10-bolt rear axle, 1973-1987; C-30 dually only, 1988-1991. 8-lug 2WD only. Switch lists the shock extension brackets for C-30 10-bolt trucks.

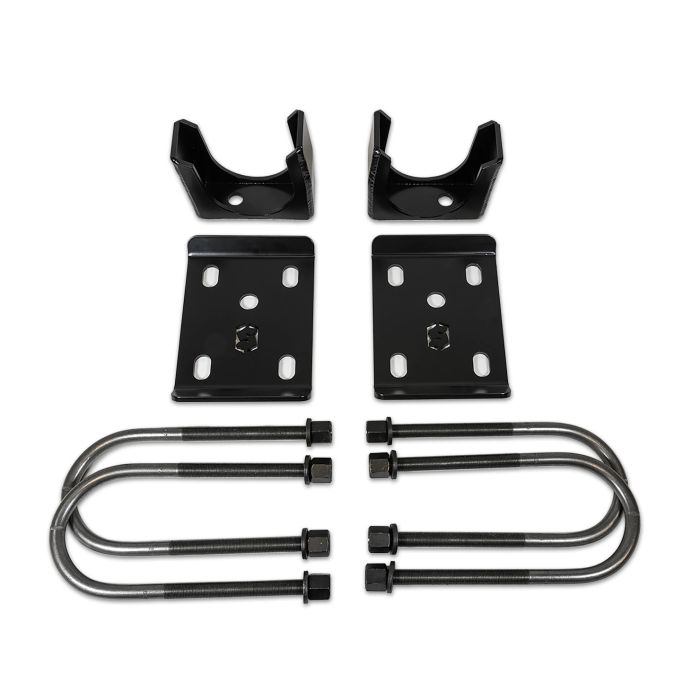

What's Included
- Axle flip saddle (2)
- Lower U-bolt plate (2)
- U-bolt with hardware (4)
- Centering pins (2)
- Rear shock extension bracket (2)
- Grade 8 mounting hardware for the shock brackets
Notes
- Fits 8-lug 2WD only, 10-bolt rear axle only
- Requires a frame C-notch for axle clearance (see SWIC30NOTCH)
- Factory rear sway bar can fit with modification
| Manufacturer Part # | SWIC30FLIP + SWIC30SHOCKEXT |
|---|
