BELLTECH SP COILOVER KIT 2021+ Ford F-150 4WD -1" to -3.5"F / -5.5"R

Fits: 21+ Ford F-150 4WD
0” to -3.5” F and -5.5” R Lowering

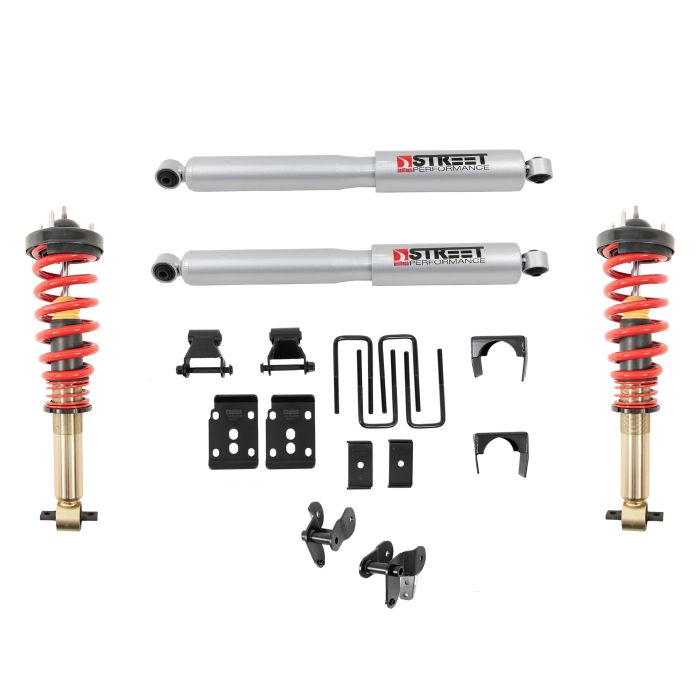

Outstanding performance, improved handling, and enhanced style are just a few of the upgrades you gain when swapping your OE suspension for Belltech’s 2021+ Ford F-150 4WD Performance Handling Lowering Kit. Our kit drops the front of your vehicle -0” to -3.5” and the rear -5.5”, giving it a drastically improved appearance and a lower center of gravity. With Belltech suspension, we go well beyond looks and deliver the ride quality you have been dreaming of. Our kit includes Belltech coilovers containing preset Street Performance dampers in the front and preset Street Performance shocks in the rear. This advanced, meticulous technology is what gives you a smooth, even-feeling ride.

The front suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech threaded damper. The dampers feature a large, 2.4” (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer height adjustability from -0” to -3.5”. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and OE style top mounts for simplified installation.

The rear end of the vehicle showcases Belltech Street Performance shocks that are perfectly tuned for your F-150. They feature large 2” (50mm) damper bodies and use 35mm independent rebound and compression valves; the result is exact, luxurious damping. Like the coilover dampers, our shocks are made with a low-friction design and use a rust-preventative coating to increase their lifespans. To achieve -5.5” in lowering, Belltech includes an easy-to-install flip kit. The flip kit contains high-quality hardware and durable finished components. It seamlessly repositions your axle without cutting or interfering with any OE parts.

Belltech’s Performance Handling Lowering Kit delivers advanced, meticulous technology to give you a smooth, balanced-feeling ride with an eye-catching, high-performance level.

• Lowering range: -0” to -3.5” front and -5.5” rear
• Complete "ready to install" front height adjustable coilovers
• Vehicle specific factory preset damping
• 35mm independent rebound and compression valves
• Large 2.4” (60mm) Street Performance dampers at the front
• Rear Street Performance 2” (50mm) shocks
• High-quality bolt-on flip kit
• Enhanced performance and handling
• Reduced body roll
• Improved ride quality
• Lowers center of gravity
• Easy installation

IMPORTANT NOTES:

• Does NOT fit models with Max Trailer Tow Package (53C).
