BELLTECH PERFORMANCE HANDLING KIT PLUS 2007-2017 Wrangler Rubicon Unlimited JK 4dr
Product Details
Fits: 07-17 Jeep JK Wrangler Rubicon (4-door) 4WD
Belltech has manufactured premium suspension solutions available in an all-in-one part number exclusively for the 2007-2017 Jeep Wrangler JK. Our Performance Handling PLUS kits come with direct fit components achieving a front lift of 2.5” with 2” in the rear to present a balanced 360 view. These kits feature 2-way independently adjustable rebound and compression damping Trail Performance shocks. Easily tune your suspension with the adjustment knobs found at the top and bottom of each damper, pre-set by our engineers, giving you the freedom to customize your suspension between comfort and sport. Put yourself in control of technology designed for the street with the precision, reliability, and value that go into every Performance Handling PLUS kit built by Belltech.
- Independent Adjustable damping forces
- Independent performance tuned 35mm compression and rebound valves
- 18 clicks of Rebound force / 12 clicks of Compression force adjustment
- 18mm piston rods
- 55mm shock bodies
- Galvanized steel shock bodies
- Progressive rate Polymer bumpstops
- Max Tire Size: 35”
- Max Wheel Back Space: 4.5”
Specifications
| Weight | 45.65 lb |
|---|---|
| Package Length | 46" |
| Package Width | 26" |
| Package Height | 13" |
| UPC Code | 722439999617 |
Documentation
| Box Dimensions (L × W × H) | 46" × 26" × 13" |
|---|---|
| Shipping Weight | 45.65 lb |
| Lowering / Lift | Lift 2"–4" |
| Installation Guide | https://prod-da.s3.us-east-2.amazonaws.com/CRVS/83ef11b6eb6eedb82b7286f0b2ae5669.pdf |
| UPC | 722439999617 |
| Manufacturer Part # | 1033HKP |
| Front Height Range | +2.5" |
| Rear Height Range | 0 |

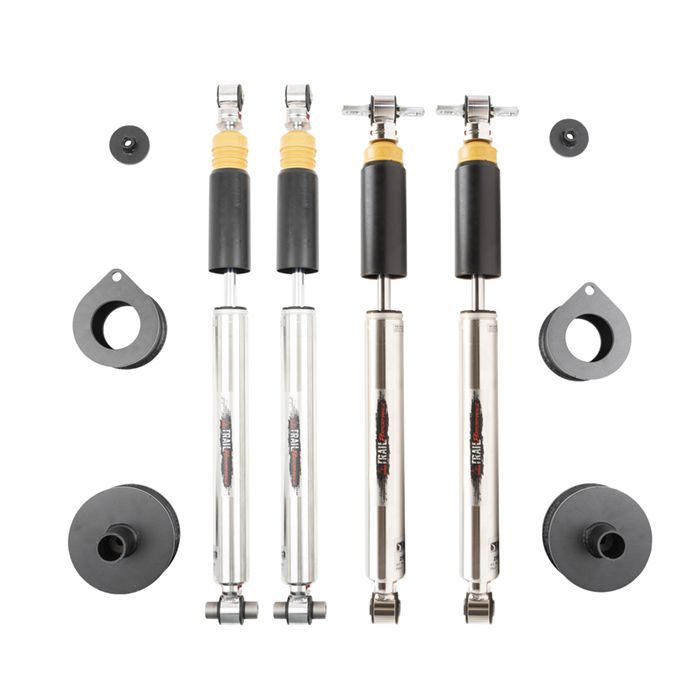

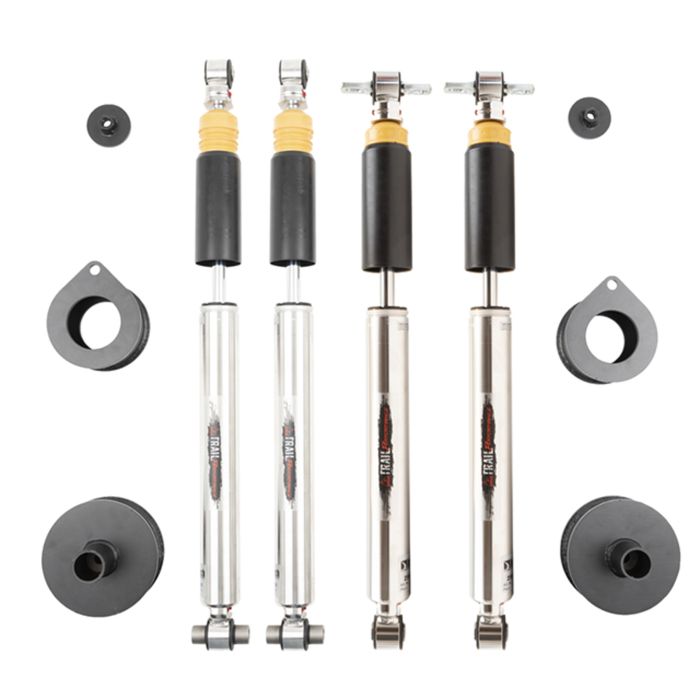

This kit ships as the following components:
| Component | SKU | Qty per Kit | Price | |
|---|---|---|---|---|
| 2.5 INCH LEVELING KIT | FRONT & REAR COIL SPRING SPACERS - 34864 | BEL-34864 | 1 | $239.00 | View / Buy |
| TRAIL PERFORMANCE ADJUSTABLE SHOCK (FRONT) - 17006 | BEL-17006 | 2 | $495.00 | View / Buy |
| TRAIL PERFORMANCE ADJUSTABLE SHOCK (REAR) - 17008 | BEL-17008 | 2 | $495.00 | View / Buy |
