BELLTECH LEVELING KITS 2022 Chevrolet Tahoe / GMC Yukon 2WD/4WD 4" Leveling Kit, 0" to 2"F / 0"-2"R

Part Number: 150222TPS

2021+ GM Tahoe/Yukon 2WD / 4WD

Front 0” to +2” and Rear 0” to +2” leveling

 Equip your 2021-2026 GM 1500 SUV with Belltech’s 150222TPS leveling kit and feel the superior handling you need.  Achieve a modern, uniform appearance while also improving handling and performance making quick maneuvers safe and precise.

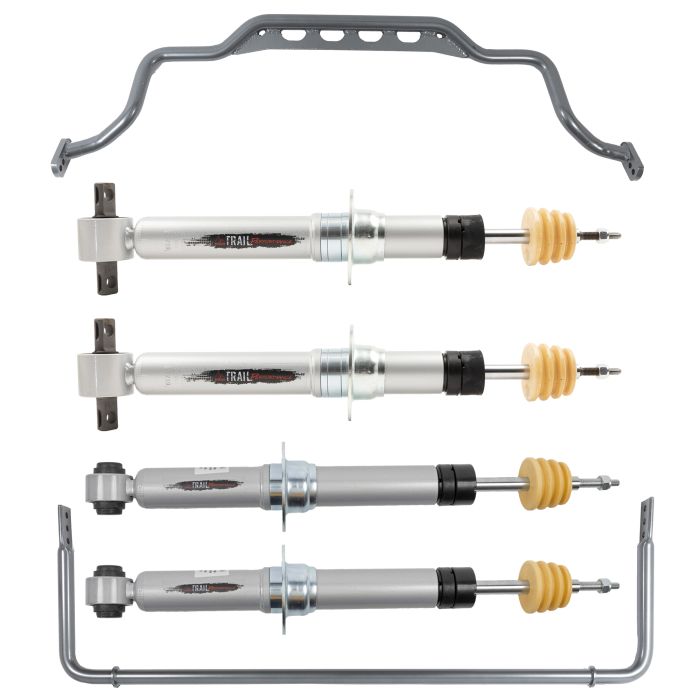

Included are Belltech Trail Performance leveling struts which have been finely tuned with perfect preset damping forces for your SUV. The front and rear struts offer height adjustability from 0” to +2” to give you the option to increase clearance or add larger tires and wheels. Belltech Trail Performance struts are comprised of many components that all work together to create the ultimate suspension option. We include a spring perch that easily accommodates the OE spring. The struts feature a 50mm damper body that was built to hold a large volume of oil. The extra space and low-friction design improve heat dissipation to keep the oil cool; ensuring damping that does not fade. The independent 35mm rebound and compression valves work to deliver precise damper tuning. The 18mm hardened chrome piston rod lends extra strength and durability. Height customization is achieved by Belltech’s patented height adjustable ring system. To accommodate each leveling option, we include packers and a progressive rate polymer open-cell bump stop to achieve precise bump stop engagement and prevent harshness while driving on an uneven road or over a speed bump. A high durometer vulcanized rubber bushing is used to further reduce vibrations and add to the smooth-balanced ride.

Lateral control is enhanced with a 1-3/8” diameter solid front sway bar and 1-1/4” diameter solid rear sway bar that are made of cold-formed steel and powder coated for longevity. The front bar feature 2 settings of adjustability and the rear has 3 settings to meet your specific performance needs.

Belltech’s 2021-2026 GM 1500 SUV complete leveling kit brings out the best in your ride with eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

• Customizable front and rear leveling options of 0” to +2”
• Large bodied 2.0” (50mm) preset Street Performance struts
• 35mm independent rebound and compression valves
• 18mm hardened chrome piston rod
• Height adjustable rings
• Replaces your OE bars to improve handling
• Reduces body-roll and aids in towing
• Designed for use with OE springs
• Complete leveling option
• Preset damping
• Easy to install
• Engineered to exemplify ride quality and performance

IMPORTANT NOTES: This Belltech Leveling Kit does NOT fit Models with ARC or Magnetic Ride Shocks.
