BELLTECH LEVELING KITS 2022 Chevrolet Tahoe / GMC Yukon 2WD/4WD 4" Leveling Kit w/ Coilovers, 0"- 2.5"F / 0"-2"R
Product Details
Part Number: 150222TPC
2021+ GM Tahoe/Yukon 2WD/4WD
Front 0” to +2.5” and Rear 0” to +2” leveling
Equip your 2021-2026 GM 1500 SUV with Belltech’s 150222TPC leveling kit and feel the superior handling you need. Our kit lifts the front of your vehicle 0” to +2.5” and 0” to +2” at the rear to set the perfect level ride height. Achieve a modern, uniform appearance while also improving handling and performance making quick maneuvers safe and precise.

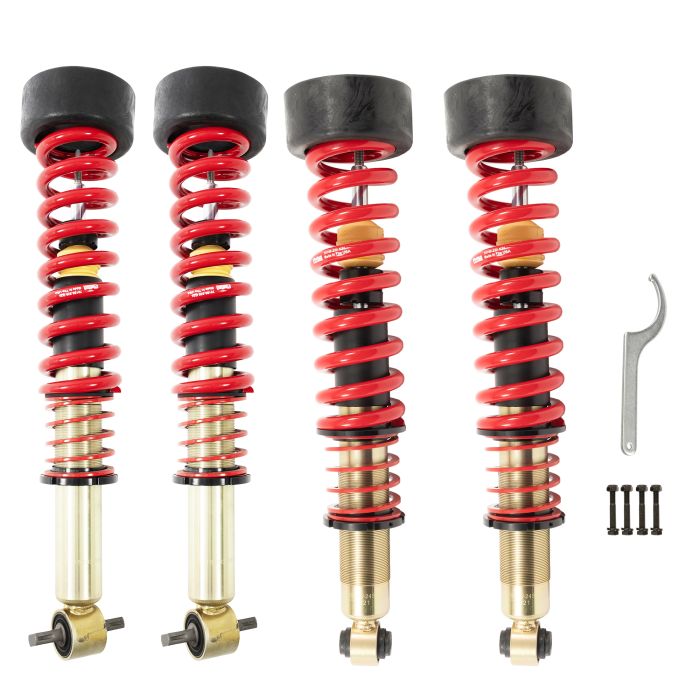

The front and rear suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large, 2.4” (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customizable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation.
Belltech’s 2021-2026 GM 1500 SUV complete leveling kit brings out the best in your ride with eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.
- Customizable front leveling options of 0” to +2.5”
- Customizable rear leveling options of 0” to +2”
- Large bodied 2.0” (50mm) preset Street Performance struts
- 35mm independent rebound and compression valves
- Cold-formed steel springs
- Designed for use with OE springs
- Complete leveling option
- Preset damping
- Easy to install
- Engineered to exemplify ride quality and performance
IMPORTANT NOTES: This Belltech Coilover Kit does NOT fit Models with ARC or Magnetic Ride Shocks.
Specifications
| Weight | 100.8 lb |
|---|---|
| Package Length | 35.75" |
| Package Width | 17" |
| Package Height | 8.25" |
| UPC Code | 722439014655 |
Documentation
| Box Dimensions (L × W × H) | 35.75" × 17" × 8.25" |
|---|---|
| Shipping Weight | 100.8 lb |
| Lowering / Lift | Lift 2"–4" |
| Installation Guide | https://prod-da.s3.us-east-2.amazonaws.com/CRVS/755c38b06b6ec7920a39aeaf1043062a.pdf |
| UPC | 722439014655 |
| Manufacturer Part # | 150222TPC |
| Front Height Range | 0" to +2.5" |
| Rear Height Range | 0 |
