BELLTECH FRONT COILOVER CONVERSION KIT 1988-1998 Chevy C1500 w/ 1.25" Brake Rotor (Compatible with 2019+ Chevy Silverado Brake Caliper) w/ Spindle & Sway Bar
$2,749.00
In stock
SKU
BEL-350F10
BELLTECH LOWERING KIT
free shipping
Hassle Free Returns
Product Details
1988-1998 GM C1500 Standard Cab
⚠️ Minimum 1.25" Rotor

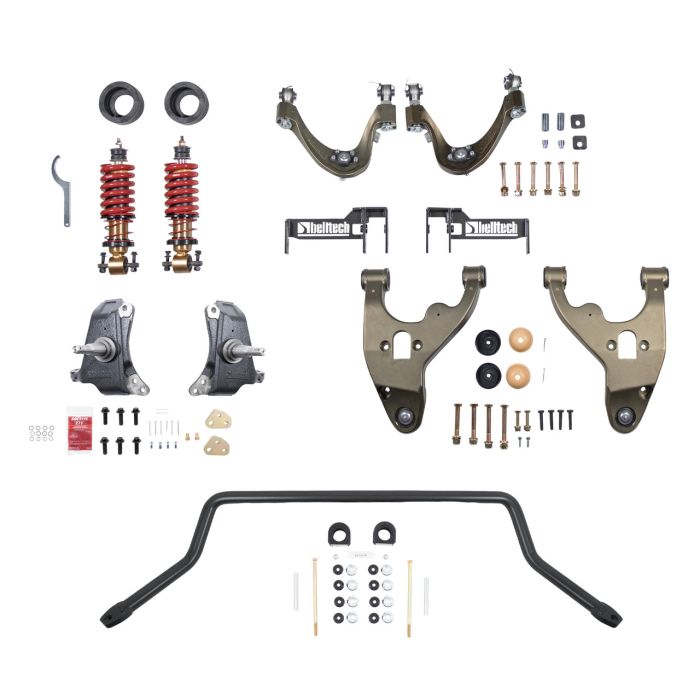

Classic look, modern manners. Belltech delivers precision-engineered bolt-on performance for the 1988–1998 Chevrolet C1500, bridging the gap between iconic OBS heritage and today’s handling standards. Our complete front height adjustable coilover system features forged aluminum upper and lower control arms with precision mounting brackets, drop spindles with brackets designed to accept 2019+ GM 1500 four-piston brake calipers, and heavy-duty front sway bar. Engineered as a fully integrated system, it achieves flatter cornering, sharper response, an aggressive, clean stance, and confidence-inspiring control on every street.
Front Features
- 3” Drop Spindle
- Built from robust ductile iron
- Retains factory track width
- Bolt-on ready with brackets and hardware to fit larger 2019+ GM 1500 four-piston calipers
- Designed to clear 18" or larger wheels
- Forged Aluminum Upper Control Arm + Mounting Bracket
- Built-in +4° caster for improved alignment and handling
- Raised pivot point optimizes anti-dive geometry
- Compatible with OEM and Moog ball joints
- Forged Aluminum Lower Control Arm + Matched Coilover Assembly
- Matched coilover and lower control arm for optimized performance
- Integrated microcellular foam bump stops for refined compression control
- Height-Adjustable Coilovers
- 2” (50mm) of fine-tuned adjustability; set ride height from -1.5” to -3.5”
- Composite upper spring adapter ensures proper spring alignment
- Sport-enhanced 300 N/mm spring rate sharpens steering response
- 1-3/8” Solid Front Sway Bar
- Boosts front roll stiffness for flatter, more predictable cornering
- Includes high-quality mounting hardware
Specifications
| Weight | 258.55 lb |
|---|---|
| Package Length | 159.75" |
| Package Width | 101" |
| Package Height | 49.75" |
| UPC Code | 722439015645 |
| Box Dimensions (L × W × H) | 159.75" × 101" × 49.75" |
|---|---|
| Shipping Weight | 258.55 lb |
| Lowering / Lift | Lowering 4" or more |
| Installation Guide | https://prod-da.s3.us-east-2.amazonaws.com/CRVS/c9f0fa15c203dd0de8e17a4f0c0312ef.pdf |
| UPC | 722439015645 |
| Manufacturer Part # | 350F10 |
| Front Height Range | -4" to -5" |
| Rear Height Range | 0 |
