BELLTECH FRONT COILOVER CONVERSION KIT 1988-1998 Chevy C1500 w/ 1.25" Brake Rotor (Compatible with OEM Brake Caliper) w/ Spindle
$2,445.00
In stock
SKU
BEL-350F01
BELLTECH LOWERING KIT
free shipping
Hassle Free Returns
Product Details
1988-1998 GM C1500 Standard Cab
⚠️ Minimum 1.25" Rotor

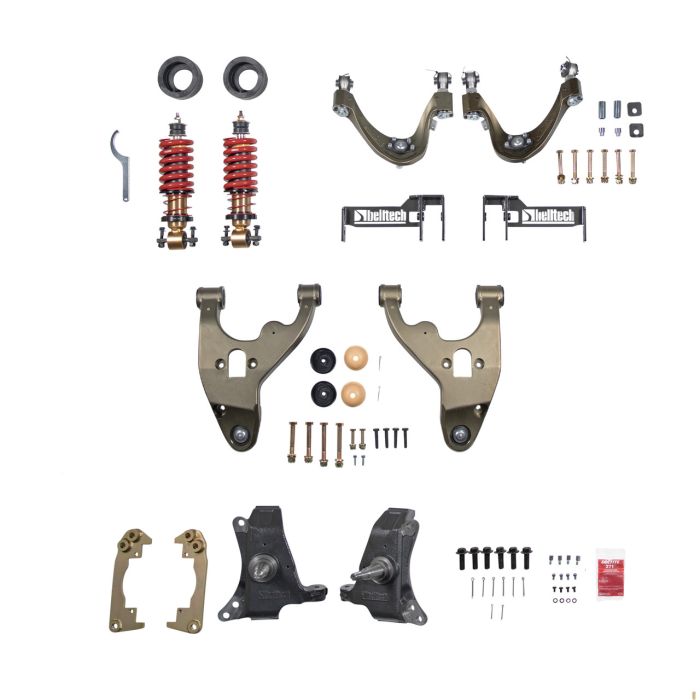

Bring modern control to a classic icon — bolt-on performance for the 1988–1998 Chevrolet C1500 with Belltech performance. This complete bolt-on front coilover system features forged aluminum upper and lower control arms with mounting brackets and drop spindles. All engineered to work together for flatter cornering, sharper response, a clean aggressive stance, and confidence-inspiring control on every street.
Front Features
- 3” Drop Spindle
- Built from robust ductile iron
- Retains factory track width
- Works with OEM brake components (requires 1.25" rotor)
- Designed to clear 18" or larger wheels
- Forged Aluminum Upper Control Arm + Mounting Bracket
- Built-in +4° caster for improved alignment and handling
- Raised pivot point optimizes anti-dive geometry
- Compatible with OEM and Moog ball joints
- Forged Aluminum Lower Control Arm + Matched Coilover Assembly
- Matched coilover and lower control arm for optimized performance
- Integrated microcellular foam bump stops for refined compression control
- Height-Adjustable Coilovers
- 2” (50mm) of fine-tuned adjustability; set ride height from -1.5” to -3.5”
- Composite upper spring adapter ensures proper spring alignment
- Sport-enhanced 300 N/mm spring rate sharpens steering response
Specifications
| Weight | 211.85 lb |
|---|---|
| Package Length | 102.75" |
| Package Width | 73" |
| Package Height | 43.75" |
| UPC Code | 722439015843 |
| Box Dimensions (L × W × H) | 102.75" × 73" × 43.75" |
|---|---|
| Shipping Weight | 211.85 lb |
| Lowering / Lift | Lowering 4" or more |
| Installation Guide | https://prod-da.s3.us-east-2.amazonaws.com/CRVS/c9f0fa15c203dd0de8e17a4f0c0312ef.pdf |
| UPC | 722439015843 |
| Manufacturer Part # | 350F01 |
| Front Height Range | -4" to -5" |
| Rear Height Range | 0 |
